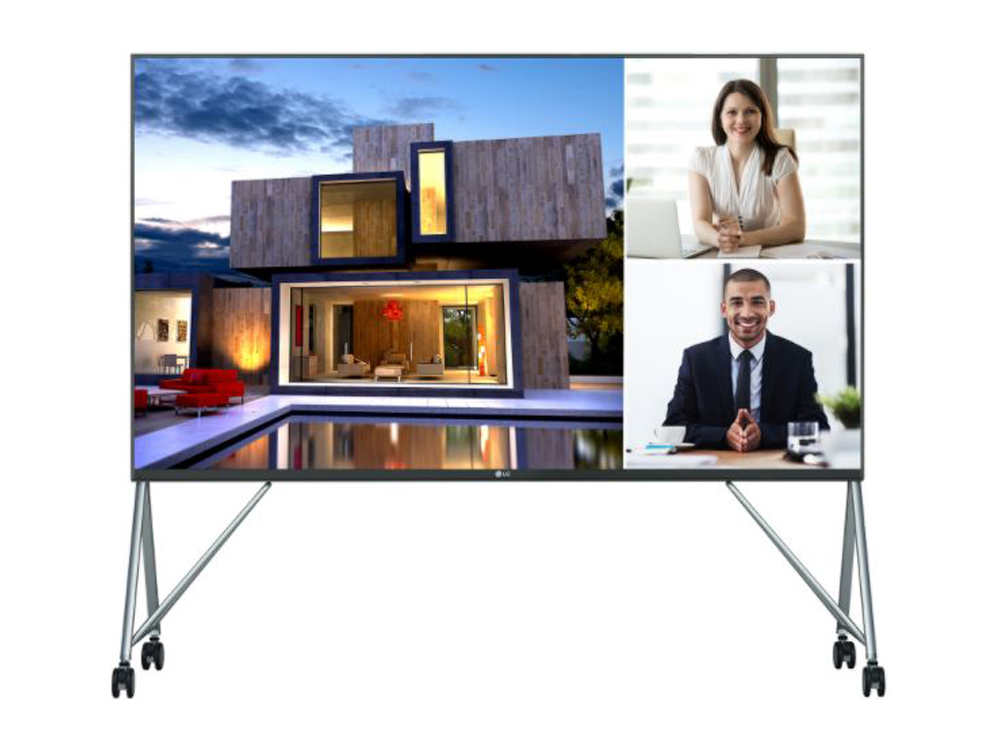

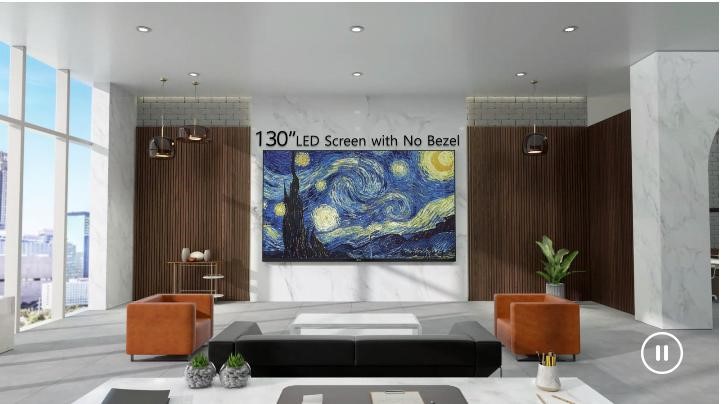

Màn Hình LED 130” All-In-One LG P1.5 LAA015F

Giá bán: Liên hệ

Model: LAA015F
Pixel Pitch: 1.5 mm

    Physical Parameters
    Pixel Configuration3 in 1 SMD
    Pixel Pitch (mm)1.50
    Screen Resolution (WxH)1,920×1,080
    Screen Dimension (W x H x D,mm)2,880 x 1,620 x 128.5 (w/o Screen Frame)
    Screen Weight (kg)175 (w/o Screen Frame)
    No. of Unit Case per Screen (WxH)3 x 3
    No. of Modules per Unit Case (WxH)4 x 3
    Unit Case Resolution (WxH)640 x 360
    Unit Case Dimensions (WxHxD, mm)960 x 540 x 128.5
    Unit Case Surface Area (m²)0.52
    Weight per Unit Case (kg/unit)Master: 20.85Slave: 19.24
    Weight per Square Meter (kg/m²)37.6
    Physical Pixel Density (pixels/m²)444,444
    Flatness of Unit Case (mm)±0.2
    Unit Case MaterialFront : Die Casting AluminumRear : PC+ABS
    Service AccessFront and Rear
    Optical Parameters
    Max. Brightness500 cd/m²
    Color Temperature6,500
    Visual Viewing Angle (Horizontal)160
    Visual Viewing Angle (Vertical)140
    Brightness Uniformity95%
    Color Uniformity±0.015Cx,Cy
    Contrast Ratio5,000:1
    Processing Depth (bit)16 (HDR10, HDR10 Pro)
    Electrical Parameters
    Power Consumption (W/Screen, Max.)2,900
    Power Consumption (W/Screen, Avg.)980
    Power Consumption (W/m², Max.)622
    Power Supply (V)100 to 240
    Frame Rate (Hz)50 / 60
    Refresh Rate (Hz)3,840
    Sound Output (Max.)162W
    Operation Conditions
    LED Lifetime (Half Brightness)100,000
    Operating Temperature (°C)0° to +40°
    Operating Humidity10-80% RH
    Connectivity (Embedded Controller)
    Video InputsHDMI In(3), DP In, USB 2.0
    ControlRJ45 In, RS232C In/Out
    Special FeaturesTemperature Sensor, Ambient Light Sensor, Crestron Connected
    PlatformwebOS 4.0
    SupportSignage365Care, SuperSign CMS
    CertificationIEC 60950-1/ EN 60950-1/ UL 60950-1FCC Class A /CE /KC
    Basic AccessoryData Cable, LAN Cable, Power Cord, RS232C Gender (9pin to Phone Jack), Remote Controller, IR Receiver, Manual
